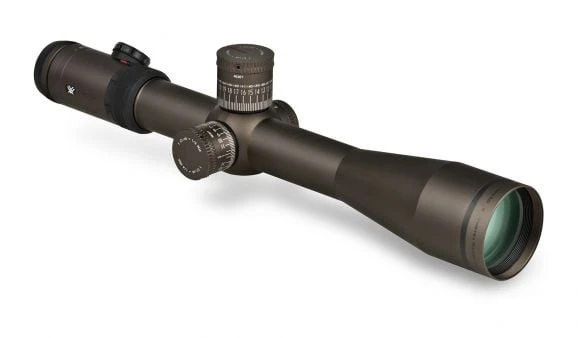

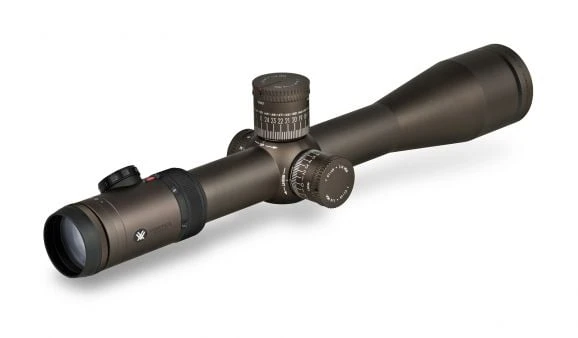

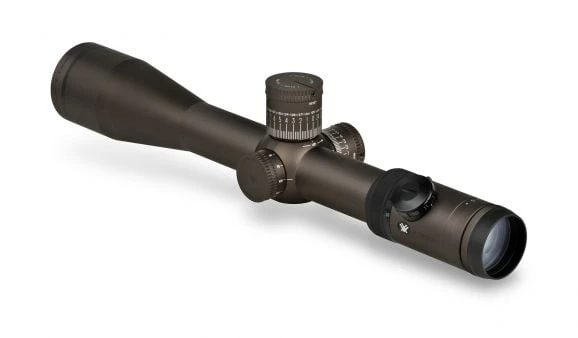

Vortex Razor HD 5-20X50 FFP EBR-2B (MOA) Reticle

Poised to fulfill the needs of even the most extreme
long-range shooters, the Razor HD has the features, build quality and optical
performance to extend your maximum capability. Animpressive optical system
offers the crisp image quality necessary to pick apart the landscape for
targets at extended range, while the 35mm, one-piece tube allows for 125 MOA
(36 MRAD) of adjustment to dial them in precisely. No scope in the Vortex line
has this much travel, and thanks to the integrated, mechanical RZR zero stop,
you can dial all day knowing you’ll always have an accurate, repeatable and
solid return to zero between stages or at the end of any range session. A
glass-etched, first focal plane reticle makes for quick and easy holdovers,
range estimations or calls for correction for a fellow shooter on any
magnification.





UNLIMITED LIFETIME
WARRANTY

FULLY TRANSFERABLE

NO RECEIPT NEEDED



Razor HD 5-20×50-EBR-2B (MOA) Dimensions (in inches)



Lengths
L1	L2	L3	L4	L5	L6
15.8	2.9	2.5	6.9	4.9	4.0



Heights
H1	H2
2.33	1.74

Dual use for Shooting Tactical / Hunting
US Patents 7,937,879 • 7,958,665 • 8,166,696

Included in the Box

• Flip
  cap ocular lens cover

• Flip
  cap objective lens cover

• 4-inch
  sunshade

• Bubble
  level

• 2mm
  hex wrench

• CR2032
  battery

• Lens
  cloth

Magnification 5-20x

Objective Lens Diameter 50 mm

Eye Relief 3.9 inches

Field of View 22-5.76 ft/100 yds

Tube Size 35 mm

Turret Style Tactical

Adjustment Graduation .1/4 MOA

Travel Per Rotation 10 MRAD

Max Elevation Adjustment 125 MOA

Max Windage Adjustment 125 MOA

Parallax Setting 40 yards to infinity

Length 15.8 inches

Weight 37 oz

Product Manual (PDF) Download

Reticle Manual (PDF) Download



OPTICAL FEATURES

APO System Index-matched lenses correct color across the
entire visual spectrum.

Optically Indexed Lenses Optimize image sharpness and
brightness from edge to edge.

HD Lens Elements Premium extra-low dispersion glass delivers
the ultimate in resolution and color fidelity, resulting in high-definition
images.

First Focal Plane Reticle Scale of reticle remains in
proportion to the zoomed image. Constant subtensions allow accurate holdover
and ranging at all magnifications.

Glass-Etched Reticle Allows for intricate reticle design.
Protected between two layers of glass for optimum durability and reliability.

Illuminated Reticle Provides precise aiming under low-light
conditions

CONSTRUCTION FEATURES

Tube Size 35 mm diameter provides maximized internal
adjustment and strength.

Single-Piece Tube Maximizes alignment for improved accuracy
and optimum visual performance, as well as ensures strength and waterproofness.

Aircraft-Grade Aluminum Constructed from a solid block of
aircraft-grade aluminum for strength and rigidity.

Waterproof O-ring seals prevent moisture, dust and debris
from penetrating the binocular for reliable performance in all environments.

Fogproof Argon gas purging prevents internal fogging over a
wide range of temperatures.

Shockproof Rugged construction withstands recoil and impact.

Hard Anodized Stealth Shadow Finish Highly durable hard-coat
anodization provides a low-glare matte surface and helps camouflage the
shooter’s position.

ArmorTek ® Ultra-hard, scratch-resistant coating protects
exterior lenses from scratches, oil and dirt.

Exposed Tactical-Style Turrets Provide fast, accurate and
easily read elevation and windage adjustments.

Side Focus Adjustment located on left side of turret housing
is easily accessible from shooting position. Provides optimal image focus and
parallax removal.

INTERNAL MECHANISM DESIGN FEATURES

RZR™ Zero Stop Rapid Zero Return (RZR) feature stops the
turret from dialing below sight in range using rugged steel components.
Internal mechanisms stay free of sand, dirt, dust, moisture and other foreign
materials—even when setting the zero-stop position. Download di

Friction Reduction System Heat-treated, hardened-steel pad
floats on the end of the turret screw and interfaces with a hardened steel ring
on the erector tube for steel-on-steel contact. Prevents galling or deformation
of the erector screw contact point for superior durability and

Turret Screws Provides low-friction, wear-resistant
performance: precision-machined from a silicon-brass alloy and treated with an
advanced dry-film lubricant. Turret screw threads are precision machined to
sub-2 micron tolerances (less than 78-millionths of an inch).

Erector Tube System Precision-machined from aircraft grade
aluminum with anti-galling properties for a lighter weight, strong, durable
tube. Stainless Steel offset coil spring erector biasing system withstands much
higher stresses than traditional flat erector springs and al

CONVENIENCE FEATURES

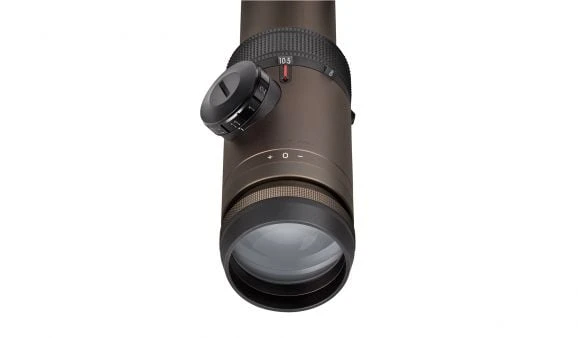

MAG-View Fiber Optic Provides a highly visible reference
point for the magnification setting.

Radius Bar Fiber optic turret rotation indicator provides a
highly visible and tactile point of reference for turret rotations. US Patent
7,937,879

Fast Focus Eyepiece Allows quick and easy reticle focusing.

RETICLE



EBR-2B (MOA)

The EBR-2B (Enhanced Battle Reticle) is a ranging reticle
using MOA-based subtension lines for ranging, holdover, and windage
corrections. Heavier windage dot references on the drop lines increase
visibility at all magnifications as well as during low light conditions.
Numbered subtensions on the crosshairs ensure quick and easy referencing.

Subtension detail for Razor HD 5-20×50 riflescope with EBR-2B
MOA reticle.
