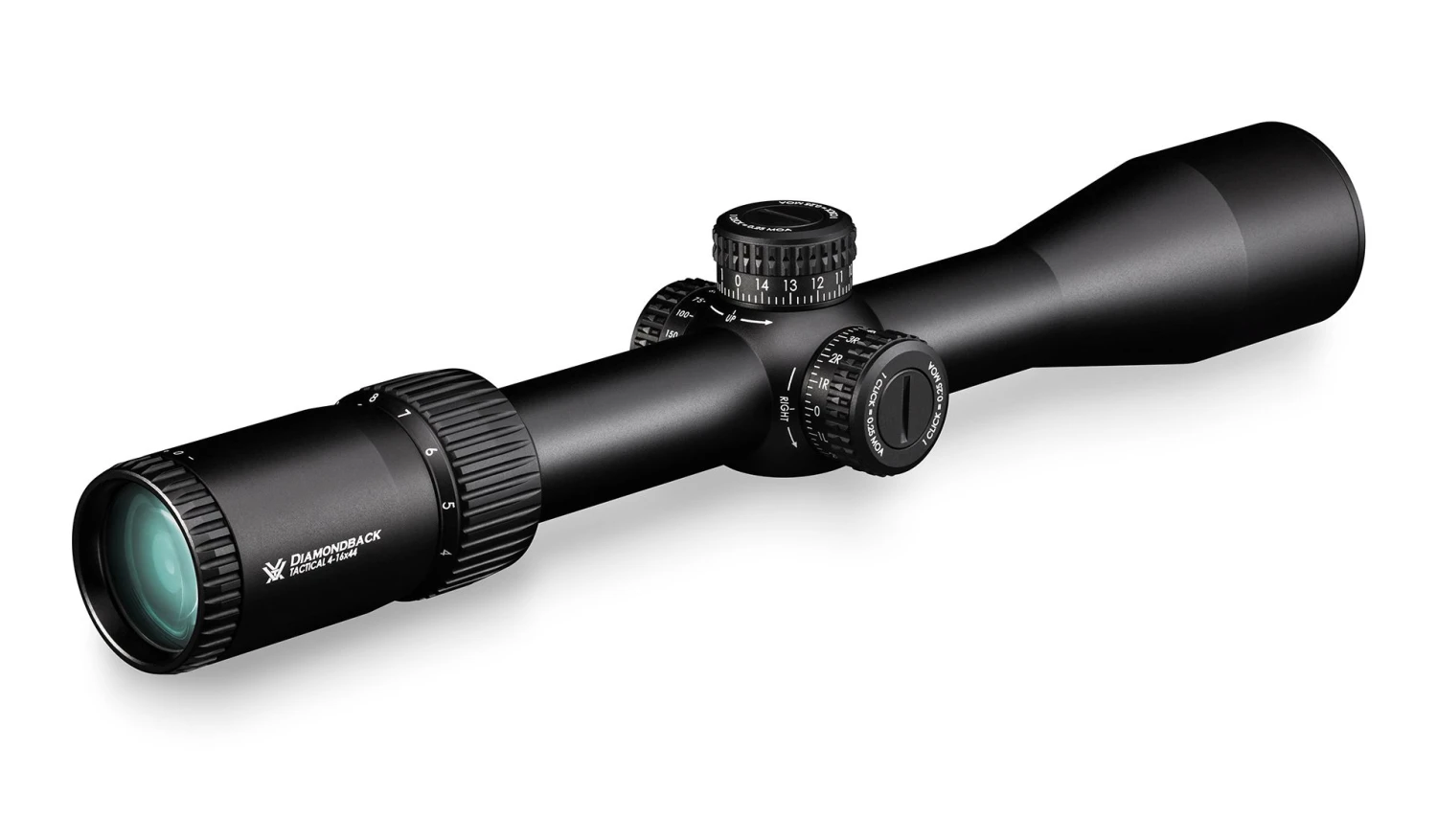

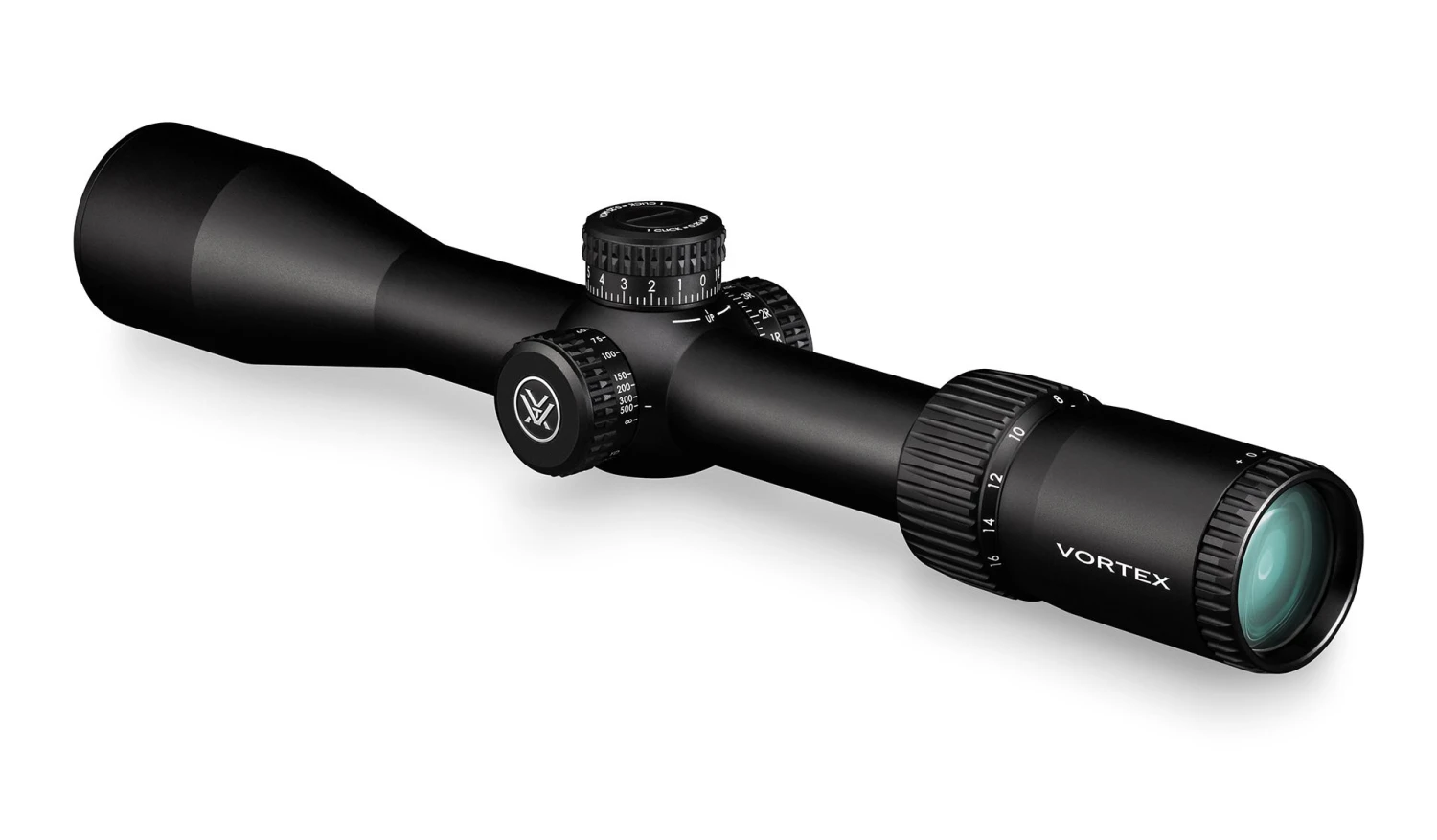

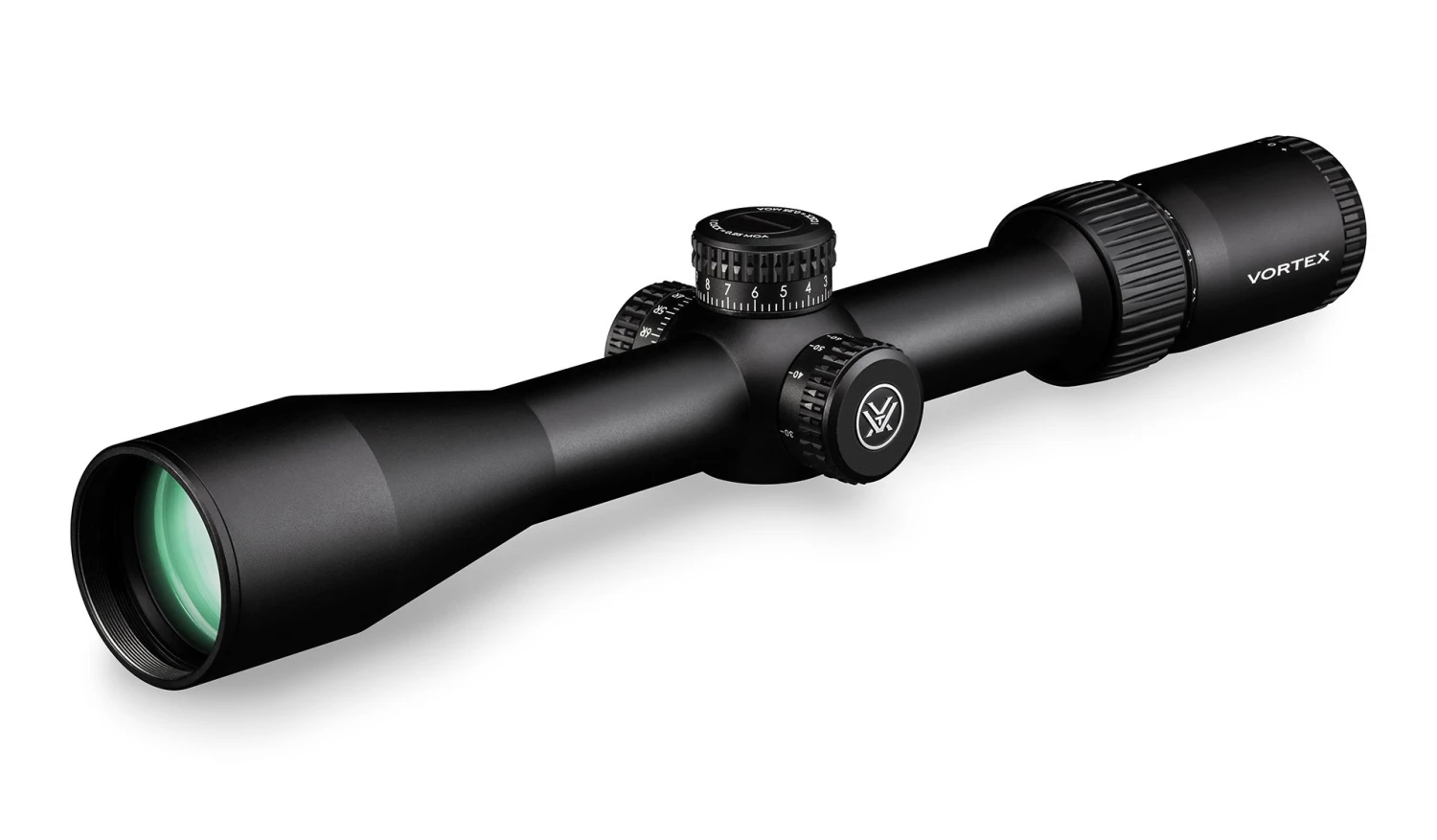

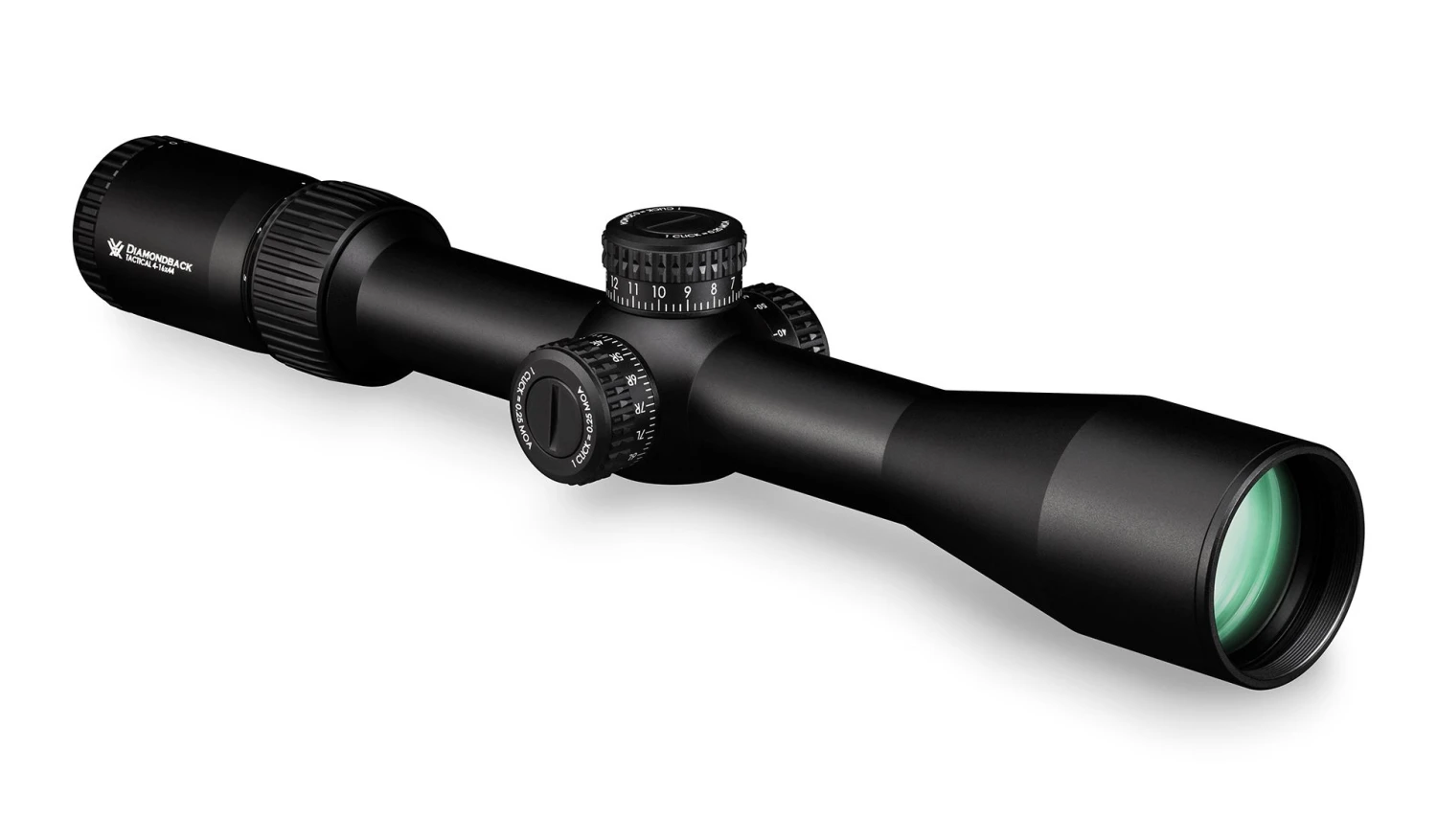

Vortex Diamondback Tactical FFP 4-16×44 MRAD

he Diamondback Tactical is a long-range wolf in sheep’s
clothing. Rather than cramming features in at the expense of turret performance
and optical quality, the Diamondback Tactical dials it back, putting the focus
where it counts. Exposed turrets bring tracking performance previously unheard
of at this price point, while its optical system delivers sharp image quality
even at extended range. Its relatively simple design places you firmly in the
driver’s seat with the potential to take on that 1,000 yard mark and beyond,
all at a price that’s easy to justify for new shooters, your training rifle, as
well as experienced shooters looking for a back-to-basics optic on their fun
gun. Opt for one of the first focal plane models on a sweet shooting rifle and
you’ve got yourself a perfectly capable competition rig without breaking the
bank.

Diamondback Tactical 4-16×44 FFP-EBR-2C (MRAD) Dimensions
(in inches)



Lengths
L1	L2	L3	L4	L5	L6
14	2.25	2.7	6.5	3.83	3.75



Heights
H1	H2
2.01	1.73



Dual use for Shooting
Tactical / Hunting

Included in the Box

• Lens
  Covers

• Lens
  Cloth

• Sunshade

Magnification 4-16x

Objective Lens Diameter 44 mm

Eye Relief 3.8 inches

Field of View 26.9-6.7 ft/100 yds

Tube Size 30 mm

Turret Style Tall Exposed Tactical

Adjustment Graduation .1 MRAD

Travel Per Rotation 6 MRAD

Max Elevation Adjustment 25 MRAD

Max Windage Adjustment 25 MRAD

Parallax Setting 20 yards to infinity

Length 14 inches

Weight 23.1 oz

Product Manual (PDF) Download

Reticle Manual (PDF) Download

OPTICAL FEATURES

XD™ Lens Elements Extra-low dispersion (XD) glass increases
resolution and color fidelity, resulting in crisp, sharp images.

Fully Multi-Coated Proprietary coatings increase light
transmission with multiple anti-reflective coatings on all air-to-glass
surfaces.

First Focal Plane Reticle Scale of reticle remains in
proportion to the zoomed image. Constant subtensions allow accurate holdover
and ranging at all magnifications.

Glass-Etched Reticle Allows for intricate reticle design.
Protected between two layers of glass for optimum durability and reliability.

CONSTRUCTION FEATURES

Tube Size 30 mm diameter provides maximized internal
adjustment and strength.

Aircraft-Grade Aluminum Constructed from a solid block of
aircraft-grade aluminum for strength and rigidity.

Waterproof O-ring seals prevent moisture, dust and debris
from penetrating the binocular for reliable performance in all environments.

Fogproof Nitrogen gas purging prevents internal fogging over
a wide range of temperatures.

Shockproof Rugged construction withstands recoil and impact.

Hard Anodized Finish Highly durable hard-coat anodization
provides a low-glare matte surface and helps camouflage the shooter’s position.

INTERNAL MECHANISM
DESIGN FEATURES

Precision-Force Spring System Uses premium components in the
erector-spring system to ensure maximum repeatability and ease of adjustment.

Precision-Glide Erector System This system ensures the
components in the zoom lens mechanism glide smoothly and cleanly through all
magnification ranges.

CONVENIENCE FEATURES

Fast Focus Eyepiece Allows quick and easy reticle focusing.

Magnification Rib The raised rib on the magnification ring
facilitates fast magnification changes in the heat of action.

RETICLE



EBR-2C (MRAD)

Hash-marked ranging reticle using MRAD based subtension
lines for ranging, holdover, and windage corrections. Letters refer to reticle
subtensions listed in chart below.

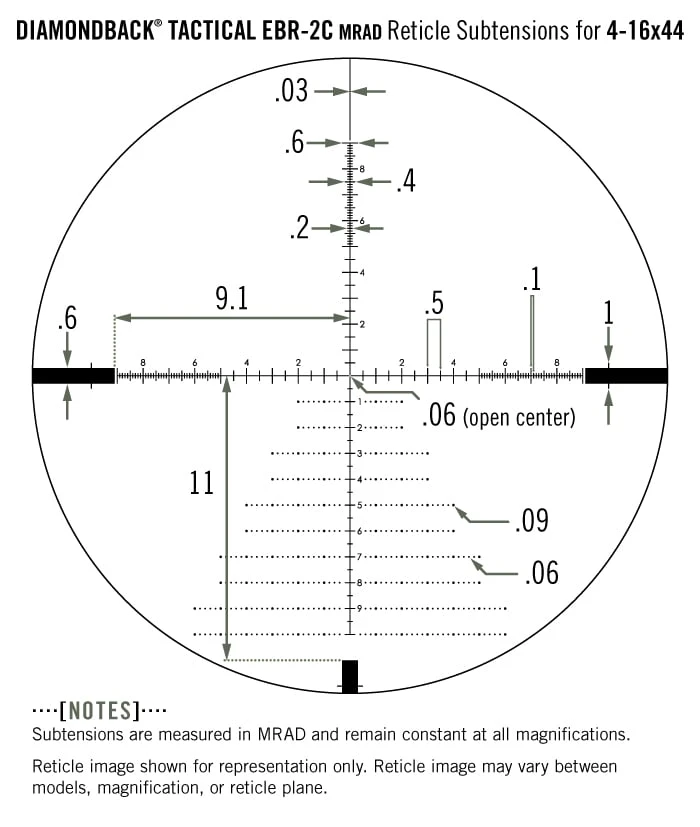

Subtension detail for Diamondback Tactical 4-16×44 FFP
riflescope with EBR-2C MRAD reticle.





OUR VIP WARRANTY IS
ABOUT YOU, NOT US.

VIP stands for a Very Important Promise to you, our
customer. We will repair or replace your Vortex® product in the event it
becomes damaged or defective—at no charge to you. If we cannot repair your
product, we will replace it with a product in perfect working order of equal or
better physical condition.

You see, it doesn’t matter how it happened, whose fault it
was or where you purchased it. If you ever have a problem, no matter the cause,
we promise to take care of you. You can count on the VIP Warranty for all
Vortex Optics riflescopes, prism scopes, red dots, rangefinders, binoculars,
spotting scopes, tripods and monoculars.

UNLIMITED LIFETIME
WARRANTY

FULLY TRANSFERABLE

NO RECEIPT NEEDED

The VIP Warranty does not cover loss, theft, deliberate
damage or cosmetic damage that does not hinder the performance of the product.
